Technical information

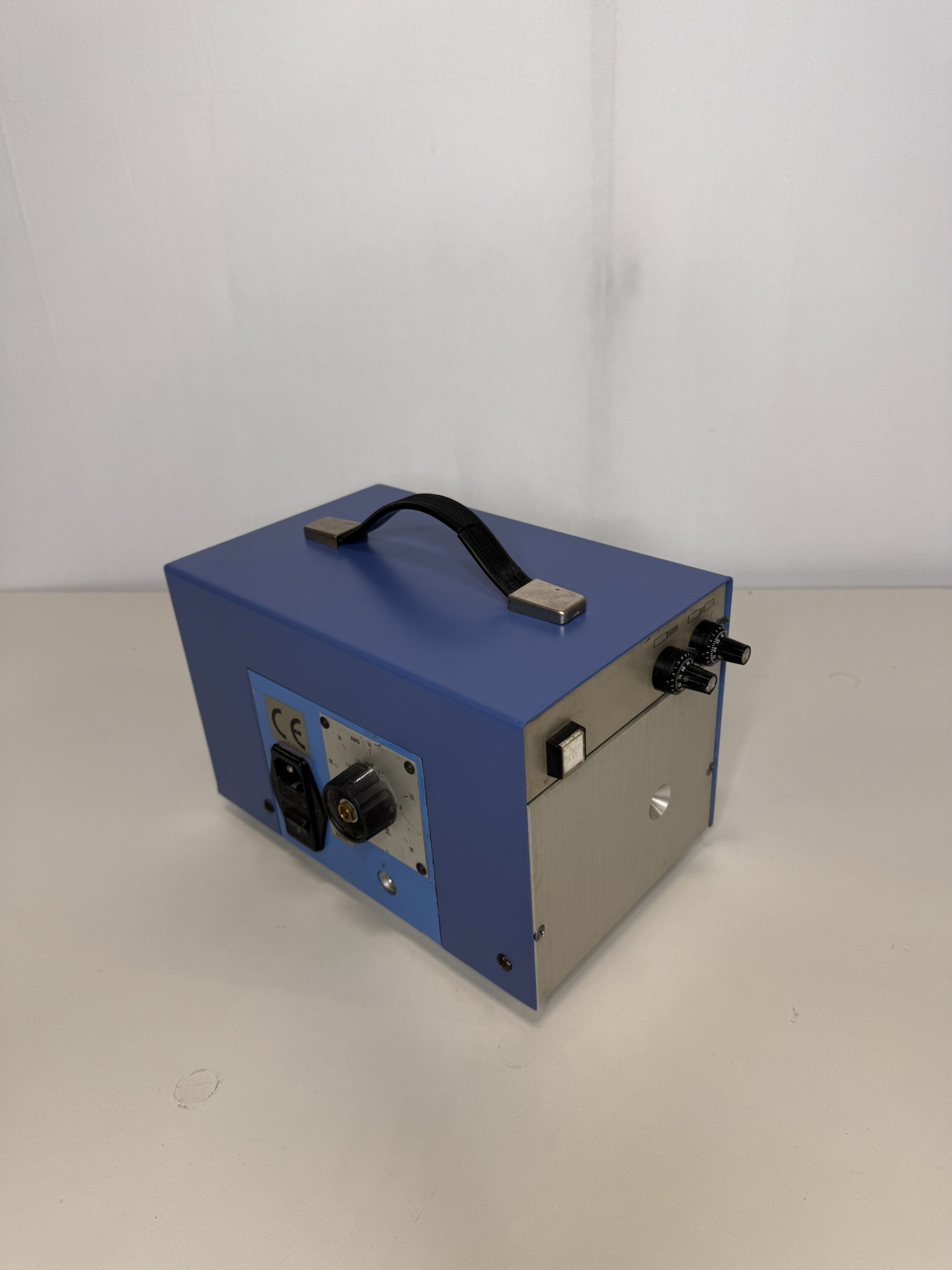

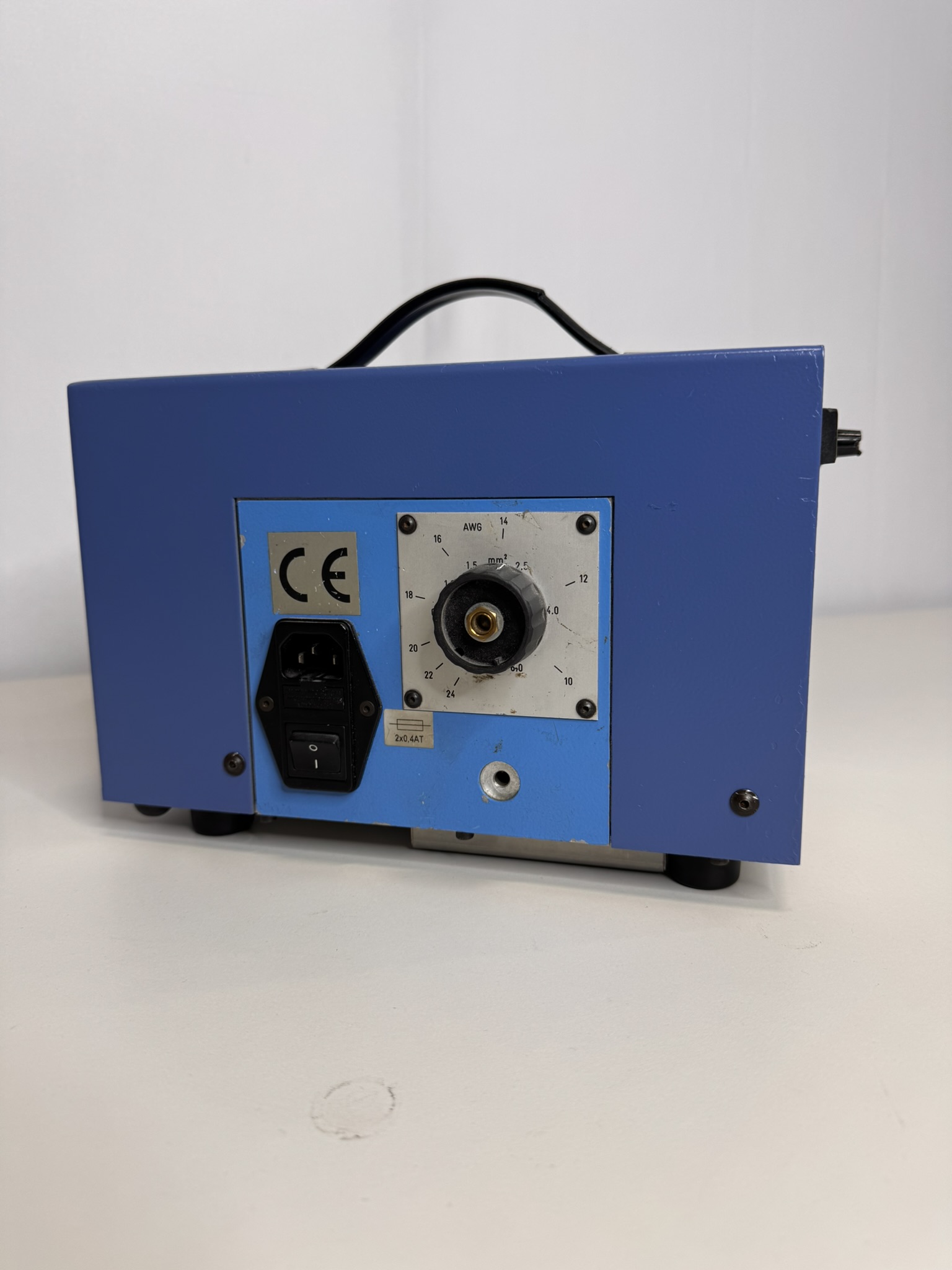

The AI01 is a stripping machine driven by an electric motor. The cutting depth is selected using a rotary dial on the side of the machine with wire size indicator in both awg and mm².

Exact stripping of different insulated wires within the cross-section range from 0.05 up to 6.0 mm² (AWG 24-10) is possible.

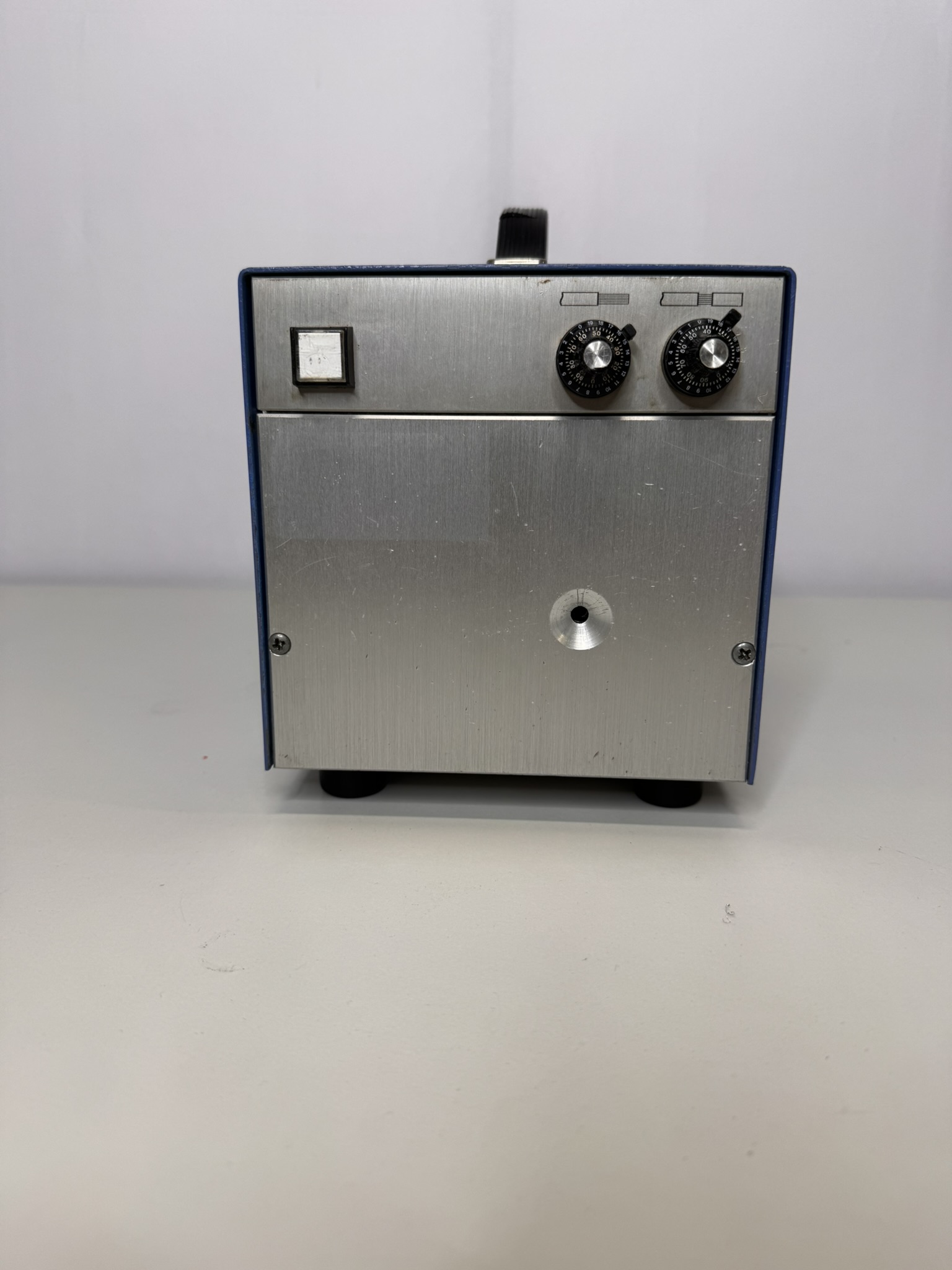

Stripping and pull-off lengths are very easy to adjust, using the rotary dial on the front of the machine.

Special features

·         Automated stripping in the range of 0.05 up to 6.0  mm² (AWG 24-10)

·         Variable adjustment of stripping length and pull-off length between 3 and 20 mm

·         Lightweight and compact build

Technical data

Stripping range:                                    3-20 mm                   Cross-section range:  0.05-6.0mm²(AWG 24-10)

Infeed length:                22 mm + stripping length                  Pull-off length:                                        1-20 mm

Drive:                                              electric motor                  Power supply:                          230V/50Hz/46VA

Cycle time:                                      approx. 0.5 s                   Dimensions (w x d x h):       180 x 294 x 190 mm

Colour:                                        blue, RAL 5012
