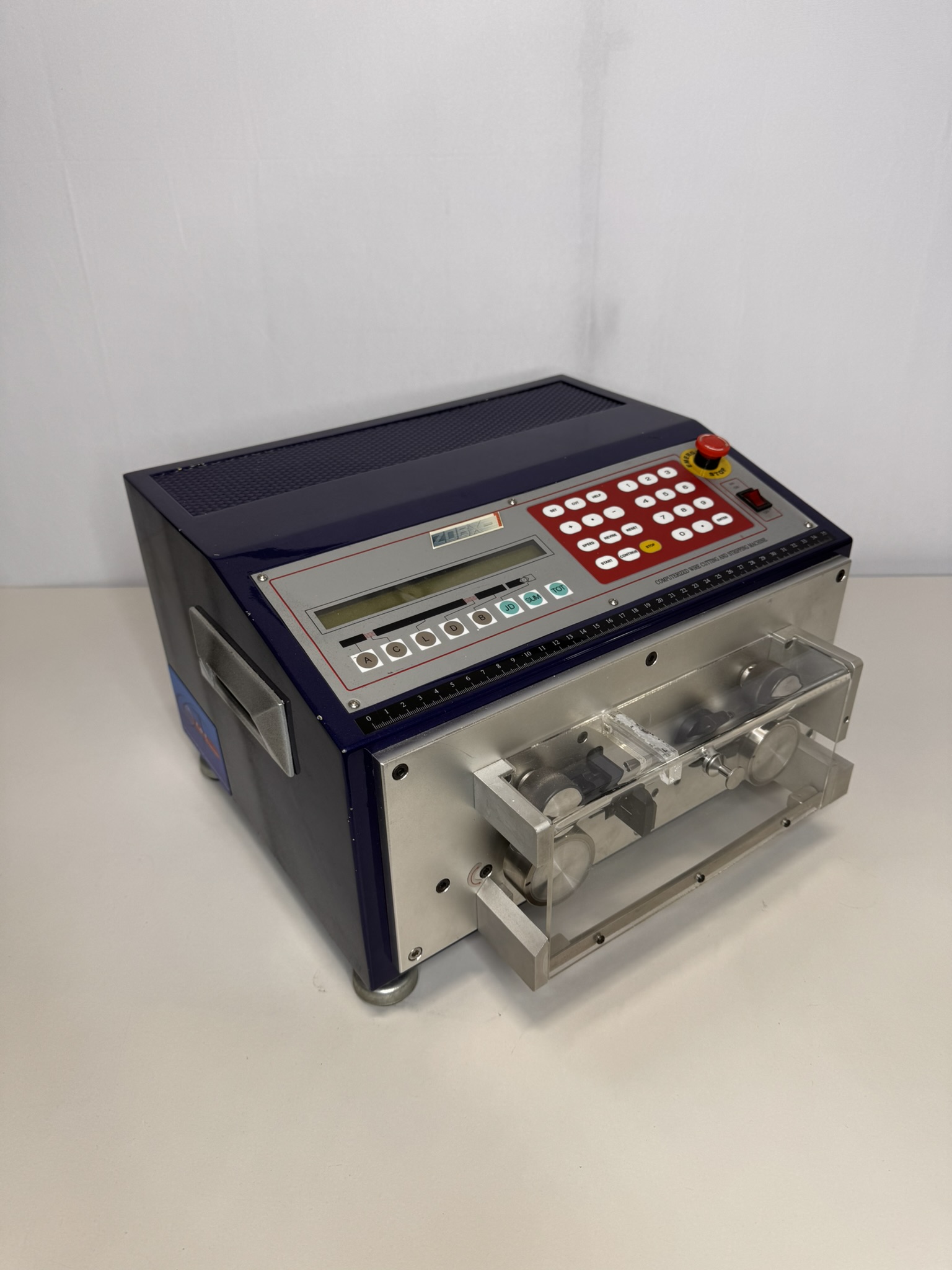

The ZDBX-1 offers a low cost computerised wire cutting and stripping machine.
Easy programming via keyboard perfectly suited for processing small wires.
Measurement – W360mm x D288mm x H200mm
Weight – 20Kgs
Power Consumption – 240W
Power Supply – AC220V
Wire Size – AWG 18-30
Stripping Length – 0.1 – 30mm
Cutting Length – 0.1 – 99999mm
Cutting Tolerances – (0.2 + 0.002 x L) mm
Wire Type – PVC, Teflon, Glass Wire
Processing Capacity – L=100mm, 85cps/min
