Cut strip and terminale automatic machine that can be equipped with up to six processing stations.

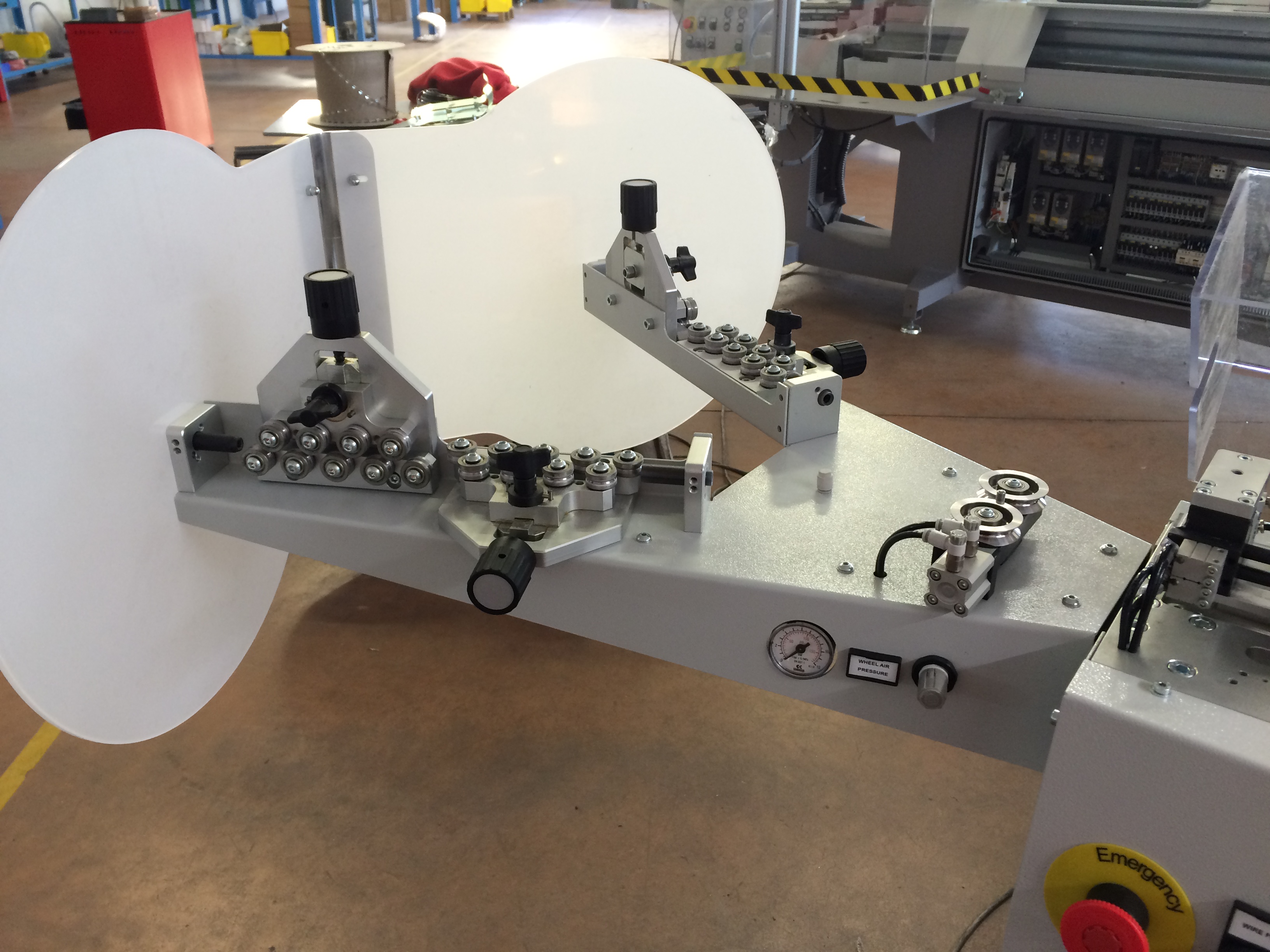

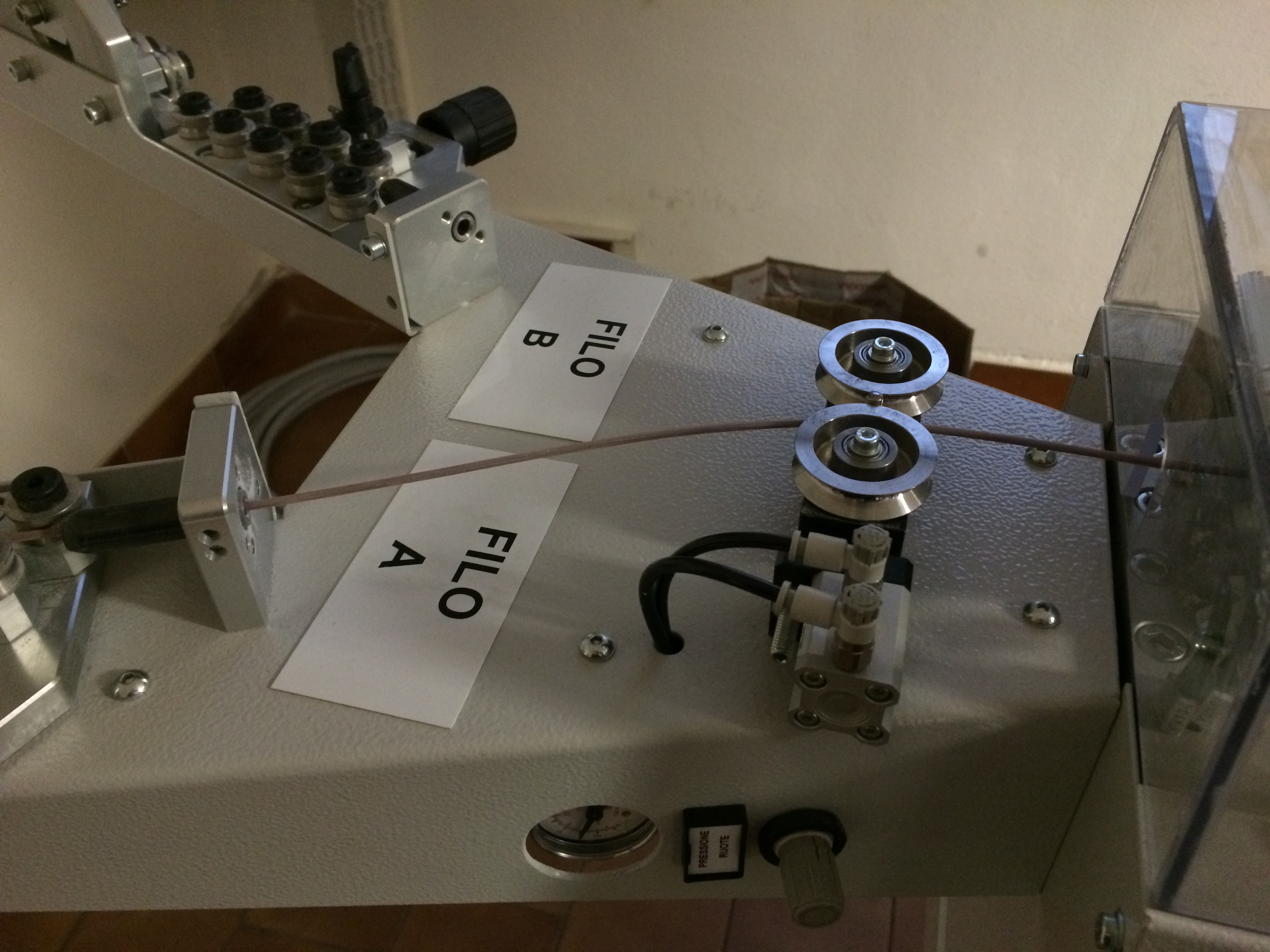

Thanks to the integration of the new patented system for the processing of two different cables, it is proposed as an innovative and technological machine.
Options:

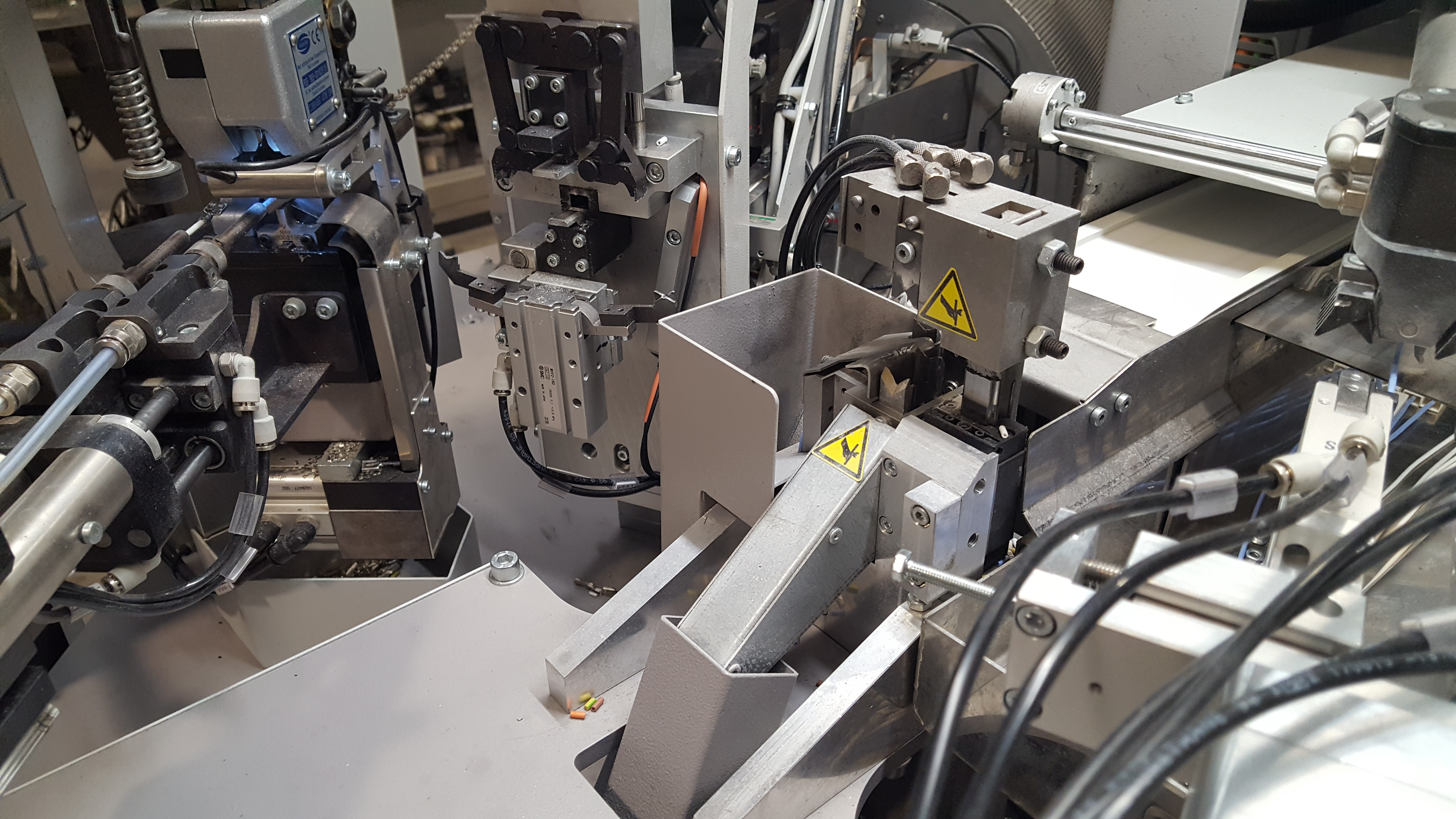

• Crimping unit with electronic crimp height adjustment;
• Videocamera for easy wire positioning on crimping units on side A;
• Integrated on Vision interface pull test;
• Integrated on Vision interface crimp height gauge;
• Touchscreen monitor;
• Paper winder;
• Programmable end reel terminals and anti jam detection system;
• Interchangeable belt drive kit;

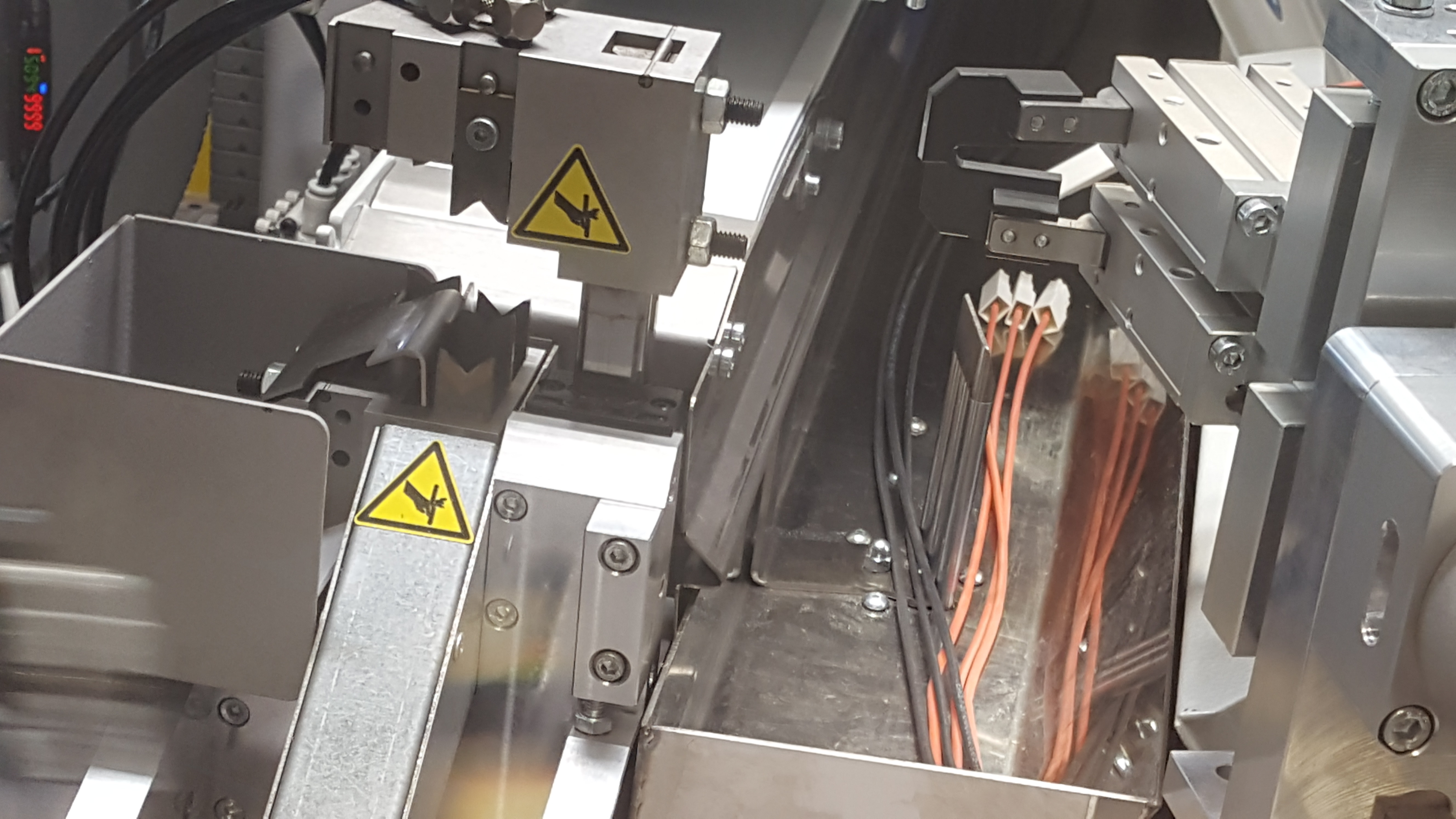

• Wire deposit unit 2m prolung;
• Working area lighting;
• Quick tool applicator;
• Integrated digital microscoper 500X;
Technical data:
Wire cross section: 0,13—2,5mm² (4mm² option)
Wire length: 42mm crimp side A 55mm crimp both side
Resolution: ±(0.2% +1mm)
Stripping length: 1— 15mm (more option)
Wire speed: 8.5m/s
Power supply: 400V 50Hz—9kVA
Air supply: 6-7 bar
Air consumption: 60l/min
Weight: ~1100Kg base machine
Noise: <75dB (without presses)
Dimensions: W4000 x D1800 x H2000mm
