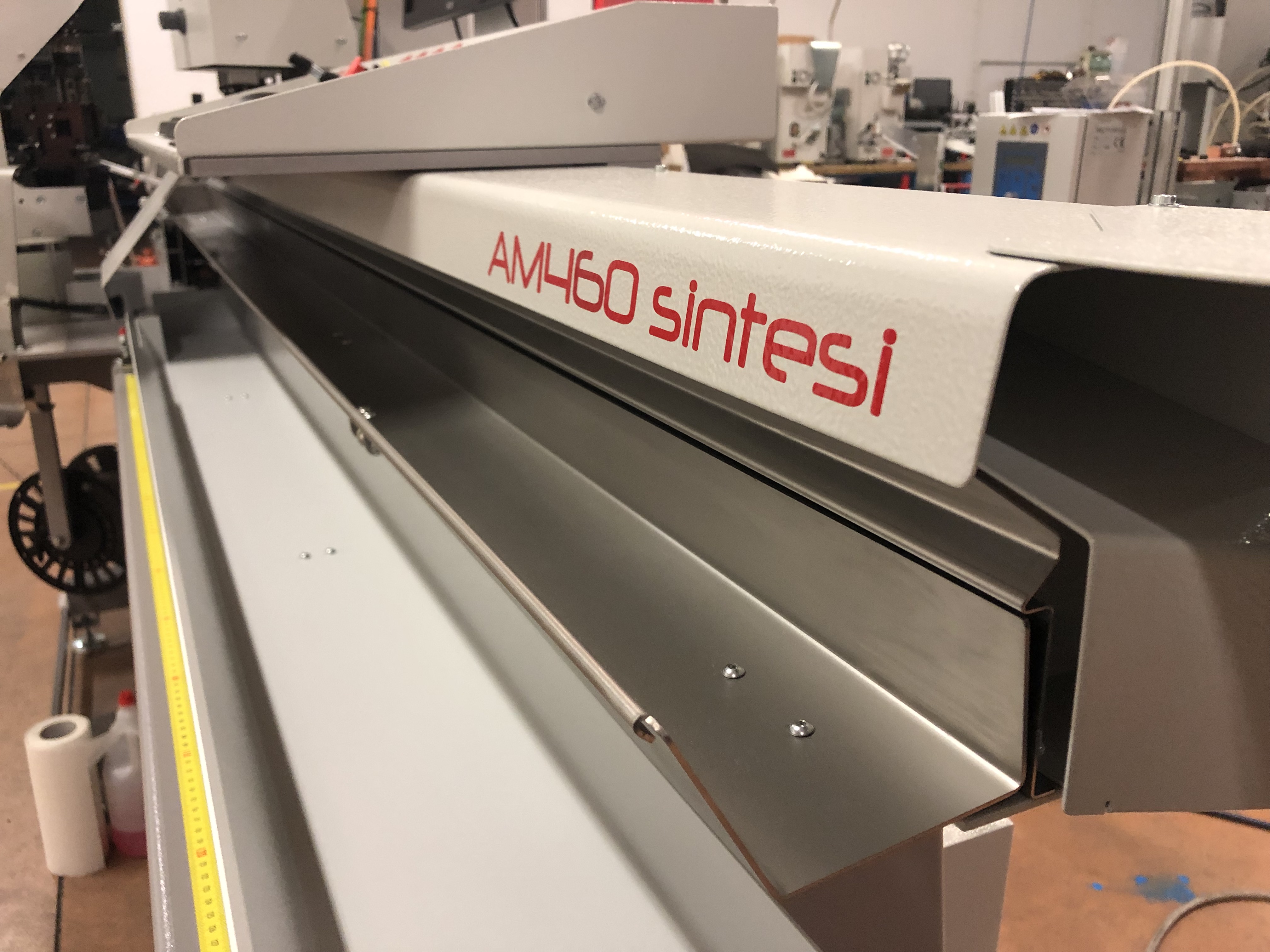

The cut strip and crimping machine AM460 sintesi, can be equipped up to five processing stations.
It is robust, reliable, ergonomic and at the same time aesthetically pleasing thanks to the Italian design style.

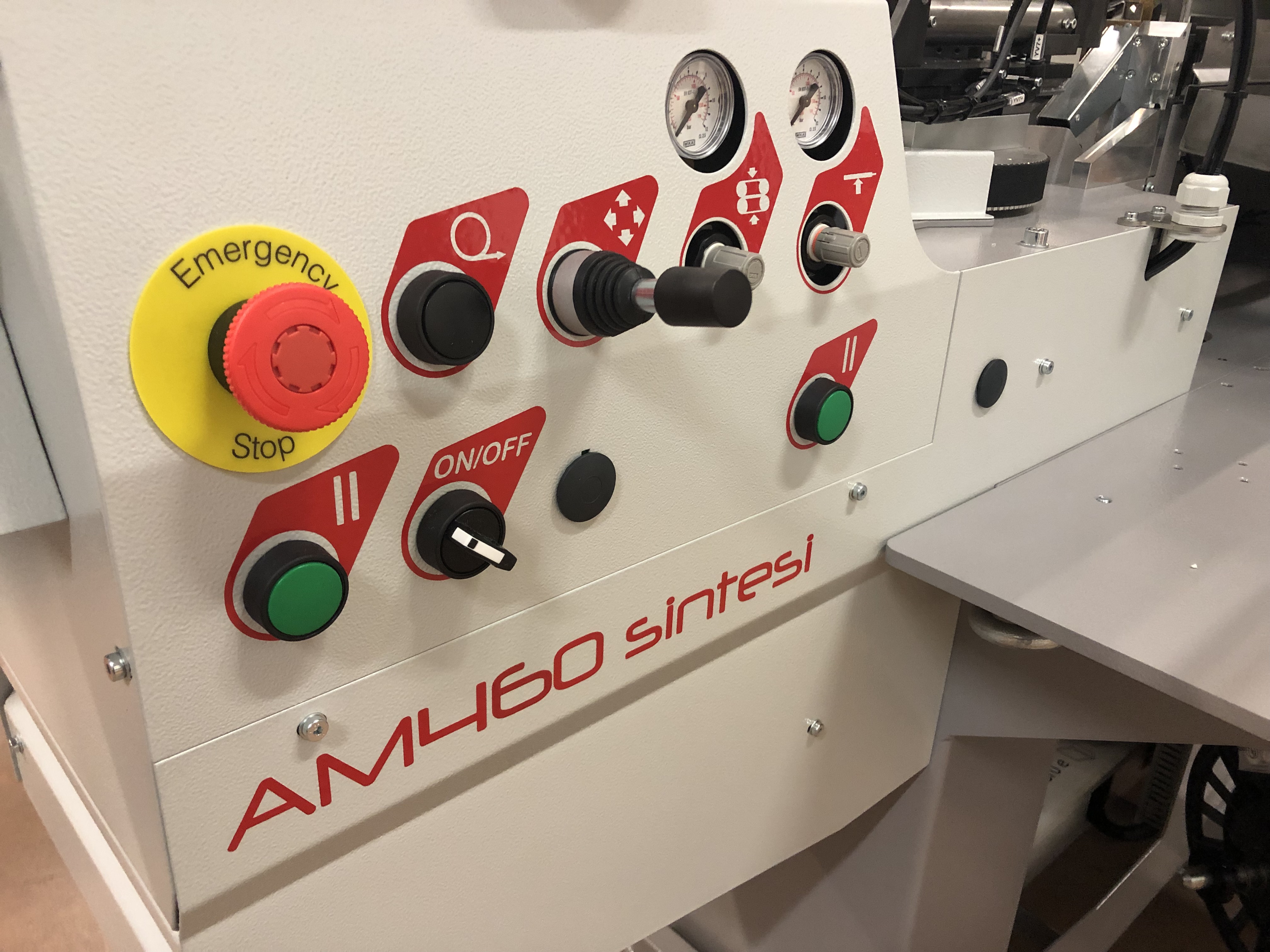

The Wirmec Vision operator interface, facilitates the machine setup and allows his the easy and fast programming machine also from remote.
Technical data:
Wire cross section: 0,13 ÷ 6mm² (26—10AWG)
Wire length: 42mm crimp side A 55mm crimp crimp both side (option <55mm with special grippers)
Length accuracy: ±(0.2% +1mm)
Strip length: 0.1 ÷ 15mm (more on request)
Feeder speed: 8.5m/s
Power supply: 400V 50Hz—3KVA
Air supply: 6-7 bar
Air consumption: 56l/min
Weight: ~1150 Kg base machine
Noise: <75dB (without crimping presses)
Dimensions: W3400 x D1400 x H2000mm
