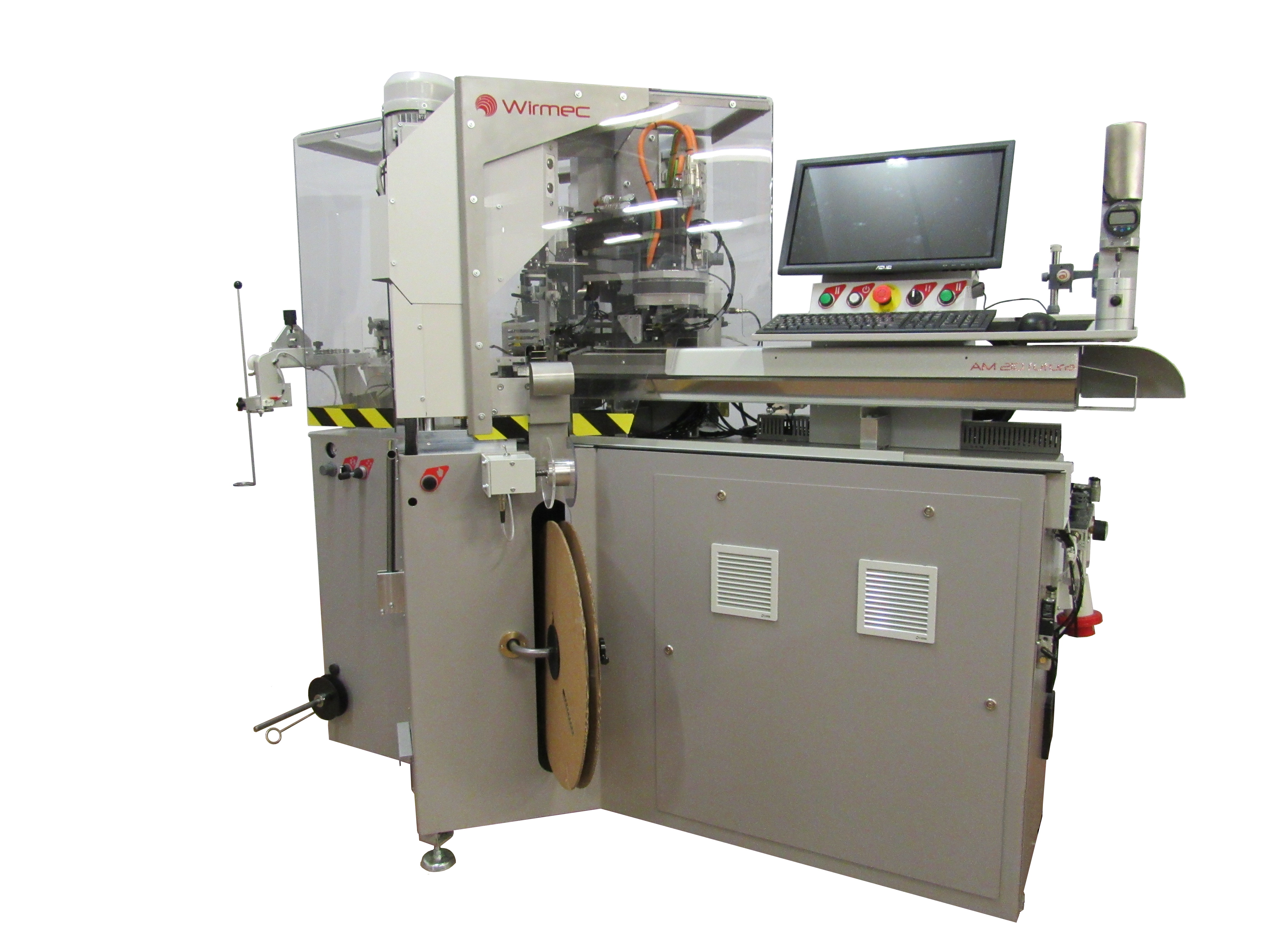

The crimp to crimp machine AM210 quattro is the ultimate expression of technology combined with Italian design.
It can be equipped with many combinations of process stations to produce high quality wire harnesses.
It's projected for processing small wire cross sections and very short wire lenght.
Presents itself as machine as very simply and easy to use.
Technical data
Wire cross section: 0,03—1,5mm² (AWG34 ÷ AWG16)
Wire length: 10mm strip both side max 2mm 25mm crimp side 1 34mm crimp both side
Length accuracy: ±(0.2% +1mm)
Strip length: 1 ÷ 10mm (more on request)
Feeder speed: 4m/s
Power supply: 400V 50Hz—3KVA
Air supply: 6-7 bar Air consumption: 55l/min
Weight: ~800Kg base machine Noise: <75dB(without crimping presses)
Dimensions: W1900 x D1000 x H1600mm
