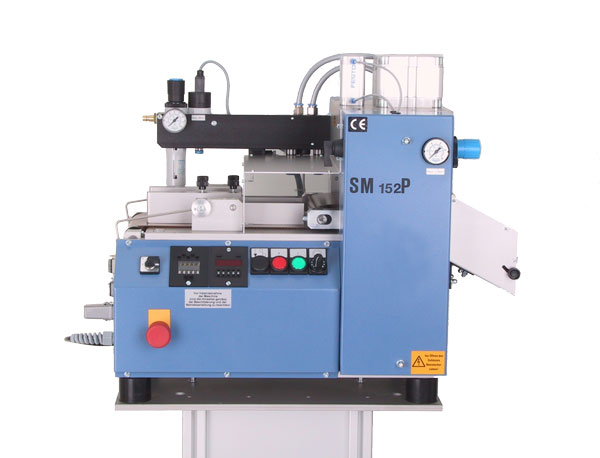

The universal cutting machines of the SM series facilitate an effective production of different materials and are characterized by their compact size and user friendly handling. The machines are used to cut hoses, cables, braid, ropes, foils and similar materials in the serial production of the automotive, electronics and plastics industries. Because of the multiline infeed entry and the synchronized belt drive, the correct material position to the cutting blade is guaranteed. With a various option program the devices can be equipped on customers’ demands. All cutting machines of the SM series can be combined and extended with other devices from our house. The transport belts of the SM15 2P are driven by an 250Watt DC-motor with a clutch-brake-combination. The adjustment of material length and pieces are set by the operator on the two electro-mechanical counters. The speed adjustment works with a potentiometer. All control panels are in a good available position.
CALL US FOR MORE DETAILS PHONE/FAX 0161 688 7246
options:
cutting cylinder 100 mm
manual lifting of upper belt
output belt with straightning
punch cutting unit for profiles
cutting unit for wave hoses
cutting unit for normal hoses
table of aluminium profiles with cladding
technical data:
length:
670 mm
width:
430 mm
height:
570 mm
weight:
60 kg
power supply:
230V/50-60Hz/16A
air supply:
6 bar
air consumption:
at 6 bar per hub ca. 3,35 l
drive:
Gleichstrom 250 Watt
feeding speed:
0,5 m/sec.
adjustable pieces:
1-99999
length measurement:
elektronisch über Impulsgeber
length adjustment:
1-99999 mm
feeding unit:
Zahnbänder oben und unten
belt sync.:
100% both belts
upperbelt adjustment:
pneumatically, high adjustment to cutting material
pulling force:
up to 20 kg, depending on material
length adjustment in 1/10 mm
punch cutting for profiles
upper belt bottom travel limit
hose cutting unit with V-knife and nozzle guide
Output belt with straightning
Messerhub 25 mm
drive with 370 Watt
table of aluminium profile with cladding
manual lifting of the upper belt
