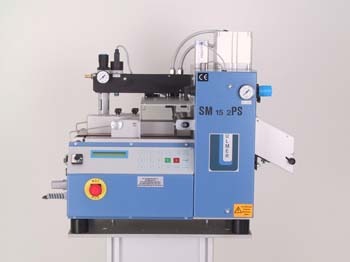

The SM15 2PS has a powerful stepper motor. The cutting length accuracy is approx. 1/10 of a millimeter. The machine can be used for a wide range of materials, such as: PVC hoses, fabric hoses, flat cable, round cable, wire, stranded wire, foil, soft rubber, hard rubber, PVC profiles, wire mesh, textiles, paper etc. Like all cutting machines of the SM15 series, the SM15 2PS can be combined with the pre-feeder ZG15 S orZG200 B2 and the delivery tray AL.
CALL US FOR MORE DETAILS PHONE/FAX 0161 688 7246
Technical details SM 15 2 P S
Cutting Range:
Width:
150 mm or 300 mm
Height:
30 mm or 40 mm
Cutting Speed:
10 mm
8400 pieces/hour
100 mm
6950 pieces/hour
1000 mm
2560 pieces/hour
10000 mm
360 pieces/hour
Technical data
Length:
670 mm
410 mm
570 mm
Weight:
60 kg
Power supply:
230V/50-60Hz/16A
Air supply:
6 bar
Air consumption:
1,35 l per stroke at 6 bar
Motor:
Stepper motor
Feed Speed:
1,0 m/sec.
Adjustable number of pieces:
1-99999
Length measurement:
electronically, with impulse generator
Length adjustment:
digitally, 1 to 99999 mm
Feed Unit:
toothed conveyor belts on top
and bottom
Synchronization of belts:
100%
Adjustment of upperbelt:
pneumatically high adjustment to
cutting material
Pulling force:
up to 20kg, depending on material
