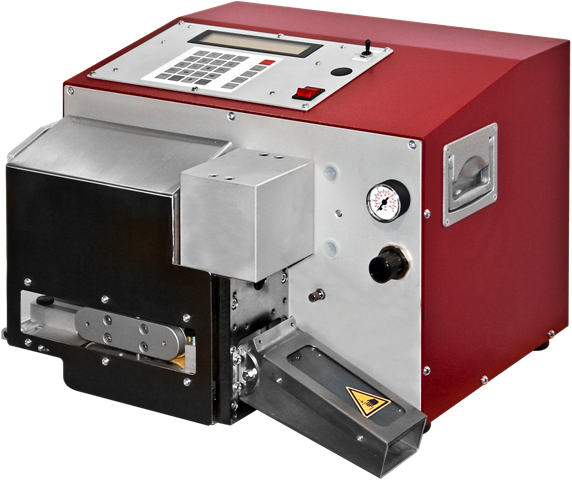

Tekuwa SC75 Cutting Machine

Electro-pneumatic cutting machine  for cutting cables up to Ø 20mm, flat cables of up to 80mm, etc.

Fast and comfortable operating via plastic foil keyboard

The software can do item and order processing

The compact flash Card of 32 Mbytes permits the memorizing of   approx. 3000 production programmes

The parallel driven belt feed supported by three rollers

AC-servo drive

Cutting unit pneumatically operated with cutting and counter blade as well as blade guides made of HSS-tool steel of high quality

Optionally there are different kinds of blades available depending on the material.

Model variations:

Servo_cut 95 : for flat cables up to 90mm

Servo-Cut 115 : for flat cables up to 110mm

The machine is conform with the present and current CE-guide lines.

CALL US FOR MORE DETAILS
PHONE/FAX 0161  688 7246

Technical Specifications :

Power supply:           220/230 v
Watt consumption:   approx. 400 watt
Air Pressure:             6-10 bar
Noise emission :         less than 75 dbA

Dimensions:
Height:                      360 mm
Width:                       490 mm
Depth:                       480 mm
Weight:                      approx. 45 kg
