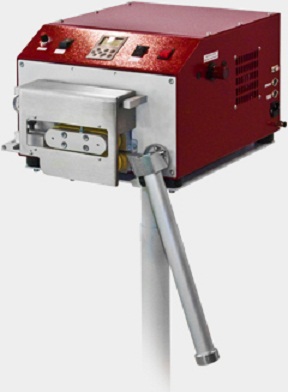

Tekuwa-PF-121 Cable Prefeeder

Increased pulling force (up to 300 N) and thus higher capacity and speed.

Made for cable drums of a weight of up to 250 kg (depending on the speed)

Mode of working:

- as independent solution with the installed mobile arm as speed indicator.
- Via release of regulator coupled to another drive, with adjusted start speed and, or mobile arm operation


Control Unit:

Revs regulation with programmable acceleration and brake ramps

Basic Equipment :

Safety cover safeguarded by sensor

In connection with a Tekuwa machine such as a cutting machine or a combined cutting and stripping machine the speed can be regulated by the master machine as standard

Belt Feed: parallel driven belt feed supported by three rollers pneumatic opening and adjustable clamping pressure via pressure regulator with indicator

Option:
Interface RS
Integrated stopping automatic for e.g. cable end

Range of Models:
PF 121/30:   left-hand run with the direction of run from right-hand to the left-hand side for operating machines such as Komax 33, direction of run of which is from the right-hand to the left-hand side.
PF 121/50:   The width of feeder opening is maximum 50mm
PF 121/75:   The width of feeder opening is maximum 75mm
PF 121/95:   The width of feeder opening is maximum 95mm

CALL US FOR MORE DETAILS
PHONE/FAX 0161 688 7246

Technical Specifications:

Dimensions (H X L X T ) with foot :  1000 x 820 x 730mm
Weight: Approx. 57 kg
Supply : 220 V AC / 700 watt
Width of feeder opening: max. 30mm
Height of feeder opening: max. 30mm
Length of belt: Approx. 130mm
Drive system: Asynchronous machine Capacity max. 1000 watt
The machine is conform with the current CE-norm.
