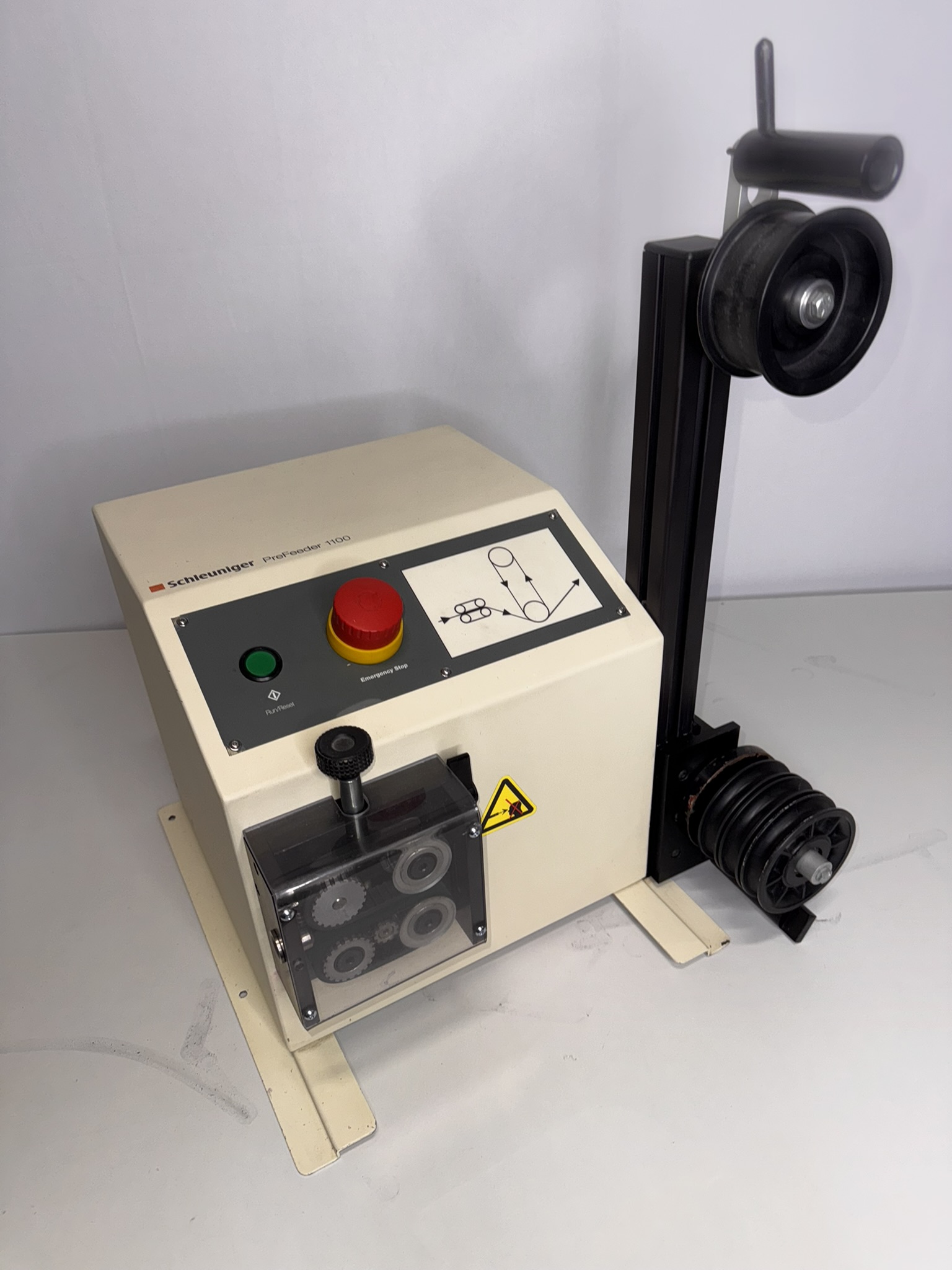

The PreFeeder 1100 is a solid and reliable bench-top electric demand pre-feeding unit for cable reels up to 20 kg (44 lb.). Along with the standard delivered cable accumulator – the PreFeeder 1100 serves as an ideal companion to the Schleuniger EcoStrip 9300 and other cable processing machines.
Cable Diameter max. 6.0 mm (0.236”)
Cable Reel Diameter max. 457 mm (18”)
Cable Reel Width max. 305 mm (12”)
Cable Reel Weight max. 20 kg (44 lb.)
Shaft Length 406 mm (16”)
Diameter Reel Centre 19 – 65 mm (0.75 – 2.5”)
Speed Rate 0 – 1.8 m/s (0 – 5 ft/s)
Accumulator Capacity 0.90 m (2.8 ft)
Motor 1/8 HP DC
Power Supply 100, 115, 230, 240 VAC; 50 – 60 Hz
Dimensions (L x W x H) with Accumulator Without cable reel holder: 457 x 419 x 500 mm (17.9 x 16.4 x 19.6”)
With cable reel holder: 785 x 419 x 500 mm (30.9 x 16.4 x 19.6”)
Weight 17 kg (38 lb.)
CE-Conformity The PreFeeder 1100 fully complies with all CE and EMC equipment guidelines relative to mechanical and electromagnetic safety and compatibility
