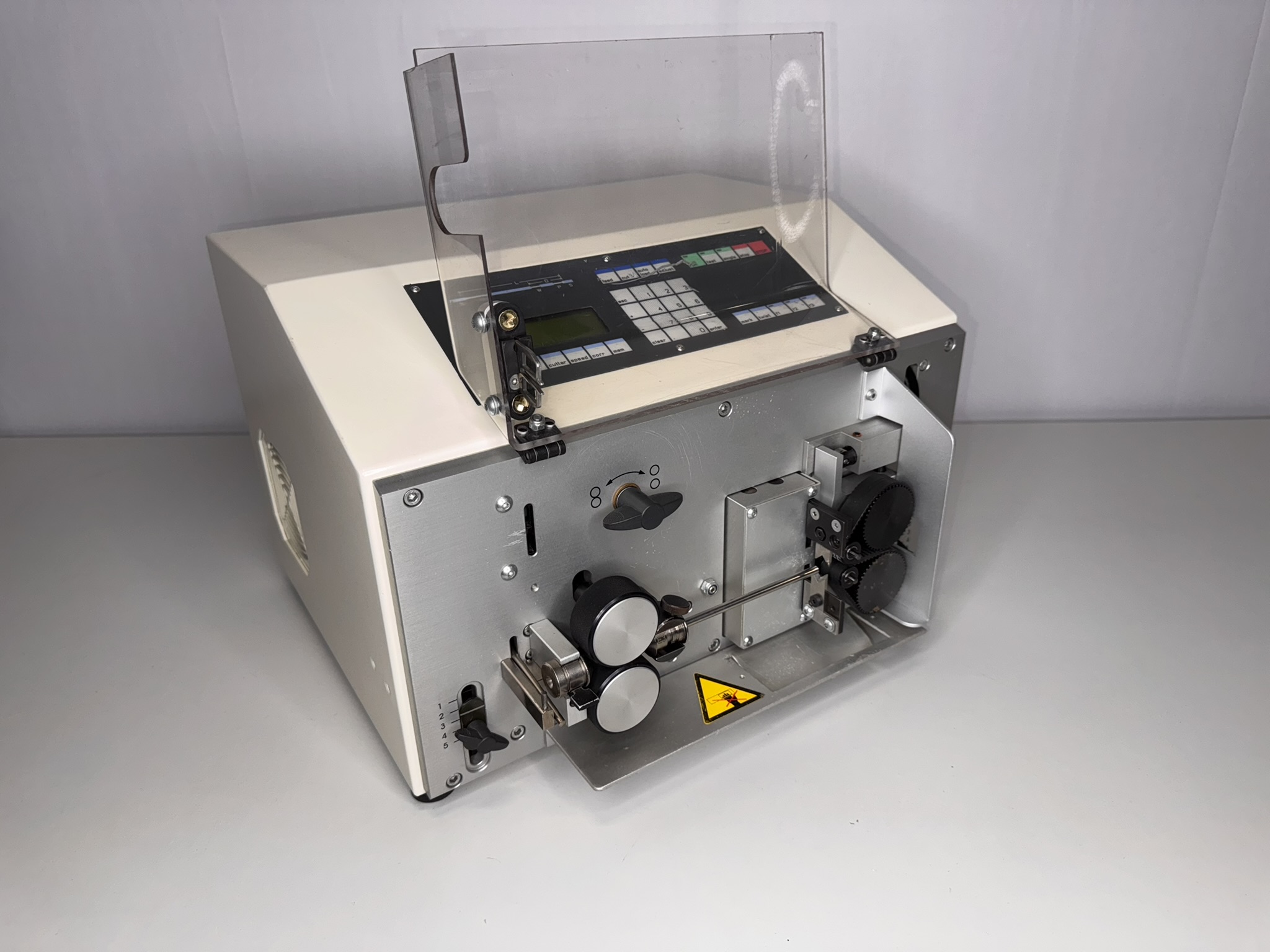

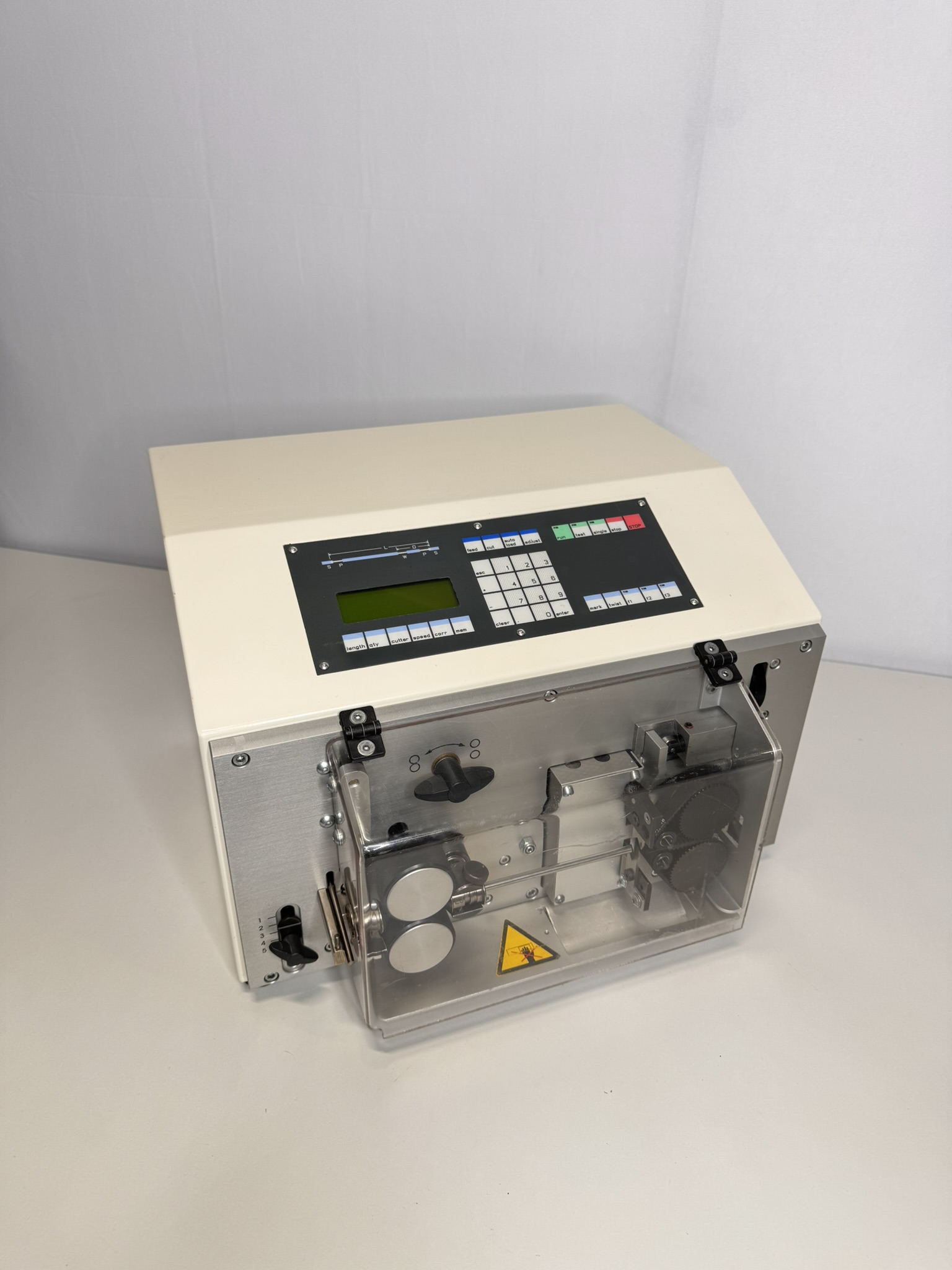

The EcoStrip 9300 is an economic efficient automatic cut & strip machine. Wide application range, high productivity, simple operation and the well-known Schleuniger stripping quality are the main features of this machine. The EcoStrip 9300 also proves that good technology does not have to be expensive.
Wire or cable length Normal mode: 45 mm to 999,999 mm [1.77” to 3280 ft] Short mode: < 45 mm [1.77”]
Conductor diameter Stranded wire: Max. 6 mm2 (10 AWG)* / Solid wire: Max. 1.5 mm2 (16 AWG)*
Stripping Length 99 mm (3.89”)
Pull-off length Right end: 45 mm [1.77”] (possibly longer, depending on type of cable) Left end: 45 mm [1.77”]
Production throughput 5200 pieces / h (22 AWG cable; length: 100 mm[3.94”]; 4 mm [0.157] Double processing*
Feed rate 9 levels 147 – 1680 mm/s [5.78-66.1”/s]
Feed rollers Standard: Steel rollers, knurled Optional: Diamond or rubber coated rollers
Blade types Standard: Carbide V-Blade Optional HSS V-blade, Radius blade, cable-specific blade
Storage capacity Up to 250 different programs
Interfaces Standard: Interfaces for hot stampers, prefeeders and wire stackers Optional: RS 232 robotic interfaces
Power supply 95 – 132 VAC / 190-264 VAC / 48 – 62 Hz / 160 VA
Dimensions (L × W × H) 410 x 370 x 275 mm [16.14” x 14.56” x 10.83”]
Weight Net: 23 kg [50.5 lbs]; gross: 31 kg [68 lbs]
CE – Conformity The EcoStrip 9300 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
