Power Supply
115 VAC, 60 Hz, max. 425 VA
230 VAC, 50 Hz, max. 425 VA
Compressed Air Supply
0,7 MPa
Heating Control
Sensor controlled heating control 90 - 180 °C
Cable Ø minimum - maximum: Single marking
1,6 mm to 16,0 mm
Cable Ø minimum - maximum: In Line production
1,6 mm to 16,0 mm
Cable Ø minimum - maximum: Optional in Linie production.
15,0 mm to 24,0 mm
Production rate
Approx. 0.5 seconds per printing action
(depending upon dwell time and stroke)
Number of wheels to be installed with letter height: 1.5 mm to 2.3 mm
1 to 44 Printing wheels
(positioning freely selectable)
Number of wheels to be installed with letter height: 2.5 mm to 3.5 mm
1 to 26 Printing wheels
(positioning freely selectable)
Letter heights in mm
1.5 / 1.6 / 1.6 vertical / 1.7 / 1.8 / 2.0 / 2.1 / 2.3 / 2.5 / 3.5 / 3.5 flat
Numbers of sings per wheel40Available signs
A to Z / 0 to 9 . / - space
Foil types
various qualities and colors
Foil measurements
29 mm x 120 m
58 mm x 120 m
116 mm x 120 m
Foil consumption
Continuously variable (adapted to letter height)

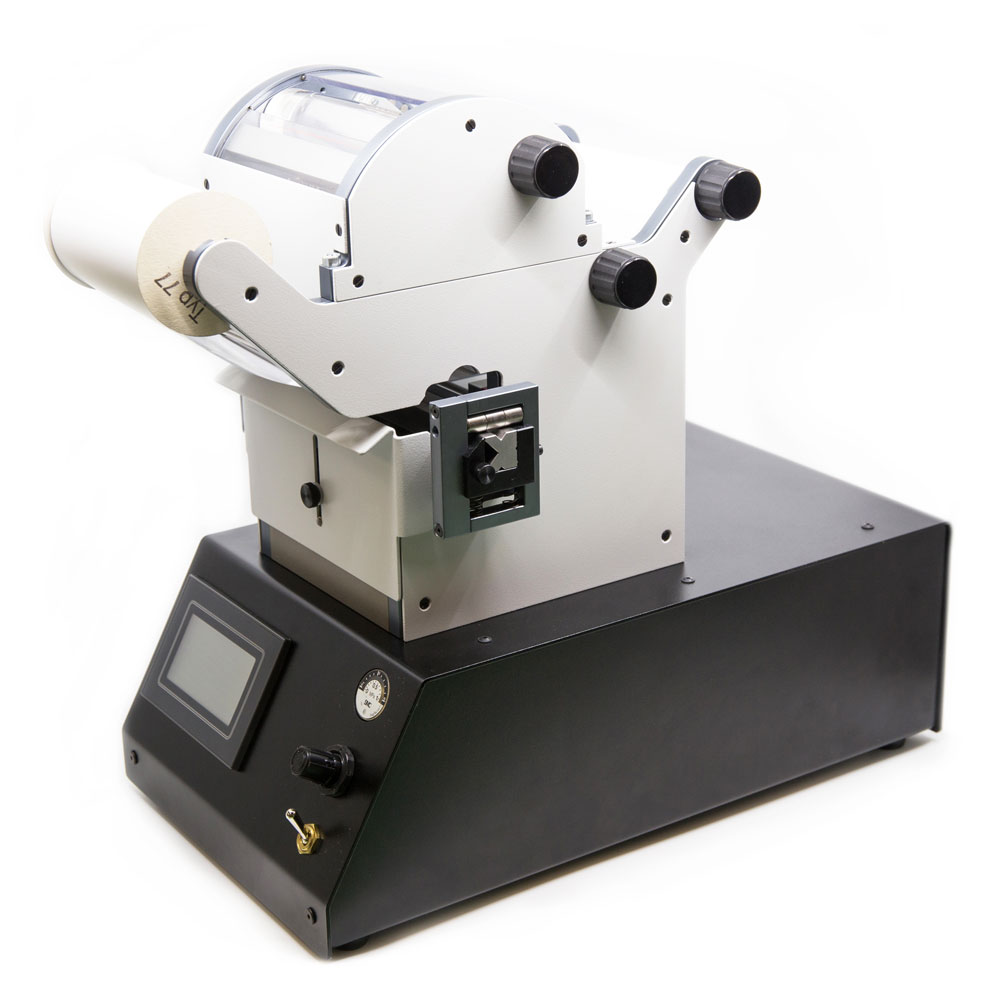

Abmessungen Z-500
(L x W x H)
470 x 230 x 400
470 x 340 x 400 with cable straightener
Weight 20 kg
Noise level
< 70 dB (A)
