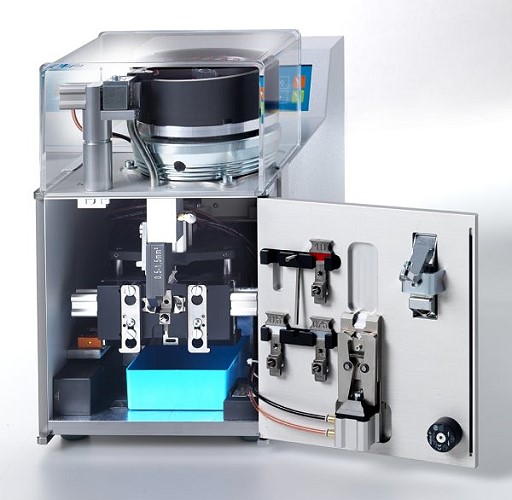

GLW MC40-1 Automatic Stripper Crimper

The MC 40-1 provides efficient processing of loose wire end sleeves with plastic collars in different lengths. This version requires no special tooling length adjustment. It is simply done by a thumb wheel. The machine features a high level of reliability and flexibility. The use of premium components in combination with a robust construction ensures reliable operation.

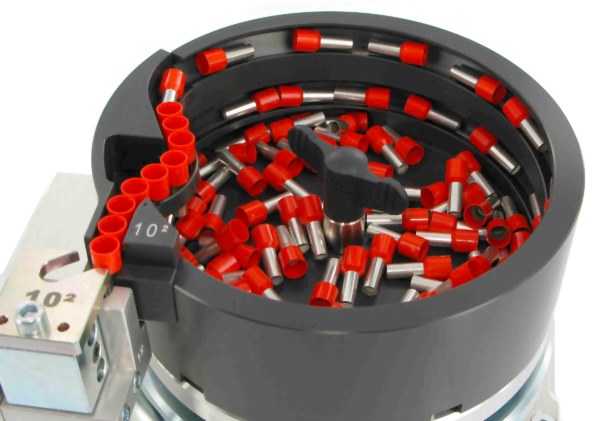

Cross-sections can be changed quickly with just a few hand movements. After the wire end sleeves have been changed in the conveyor bowl, only the cross-section-specific receptacle still just needs to be snapped in and then production can continue.

Accessories

• Extension kit for 0.25 / 0.34 mm² (length 6 and 8 mm)
• Extension kit for 2.5 mm² (length 8 - 12 mm)
• Extension kit for 4 mm² (length 10 mm)

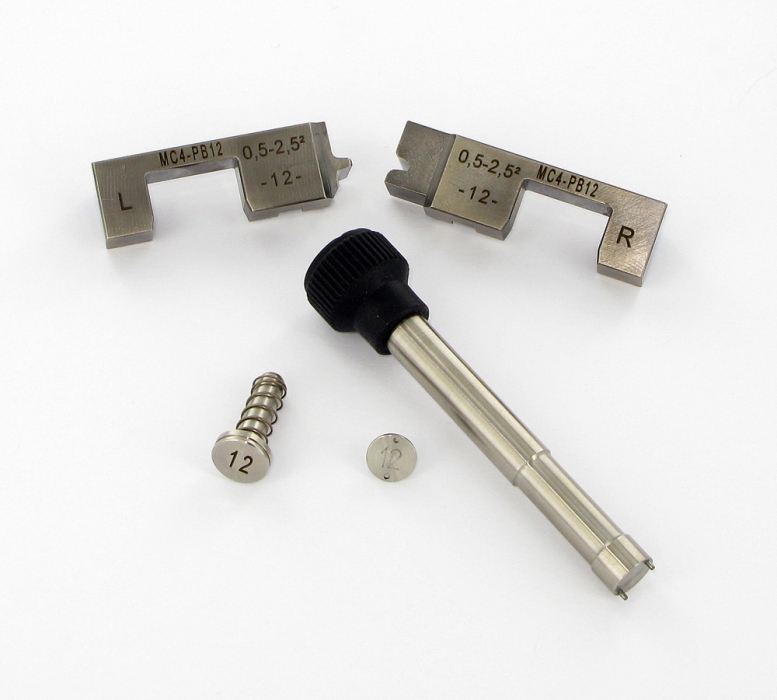

• Crimping die for square crimping

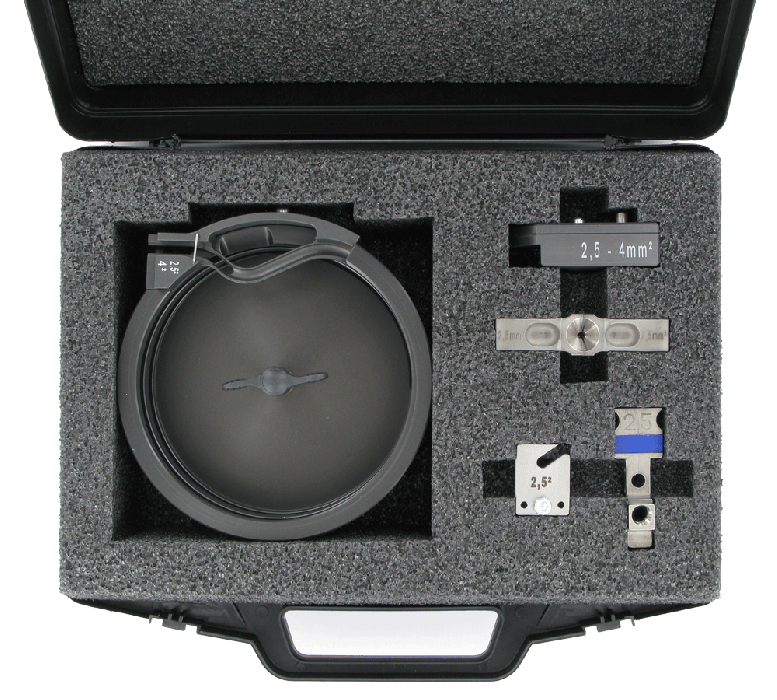

• Replacement conveyor bowl for a quick cross-section change
• Expansion kit for wire end sleeves for conductors with thick insulation (UL wires)
