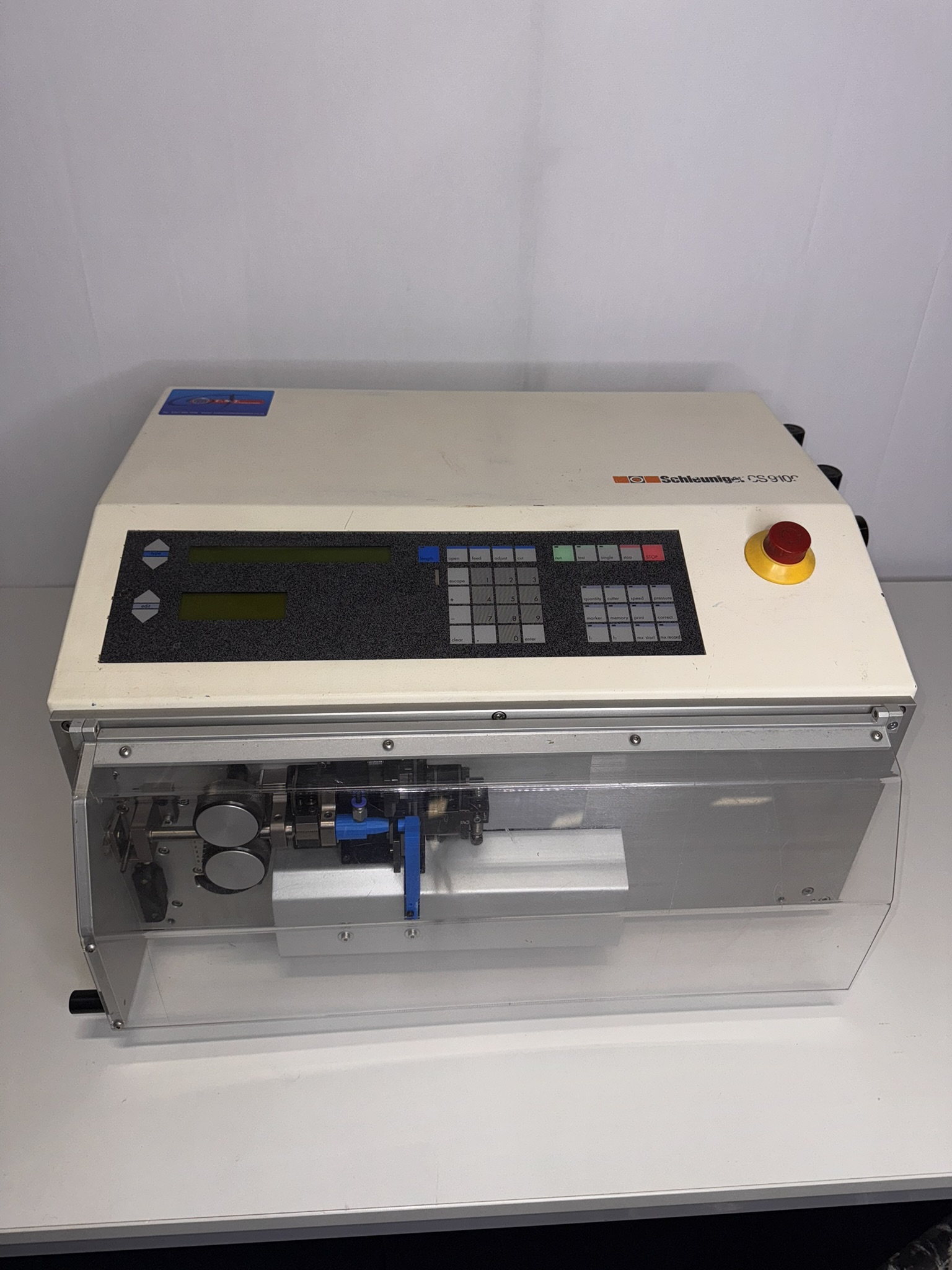

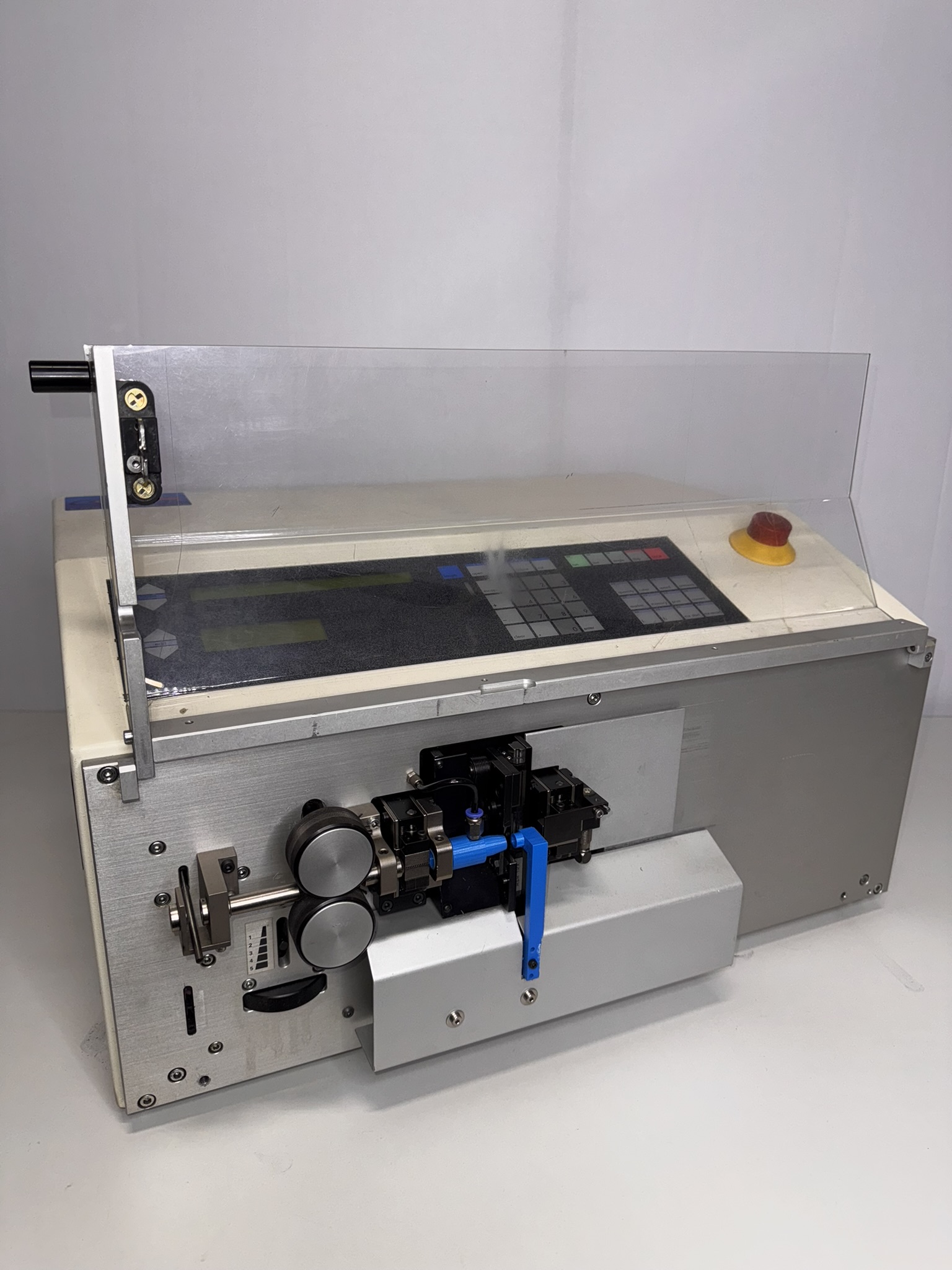

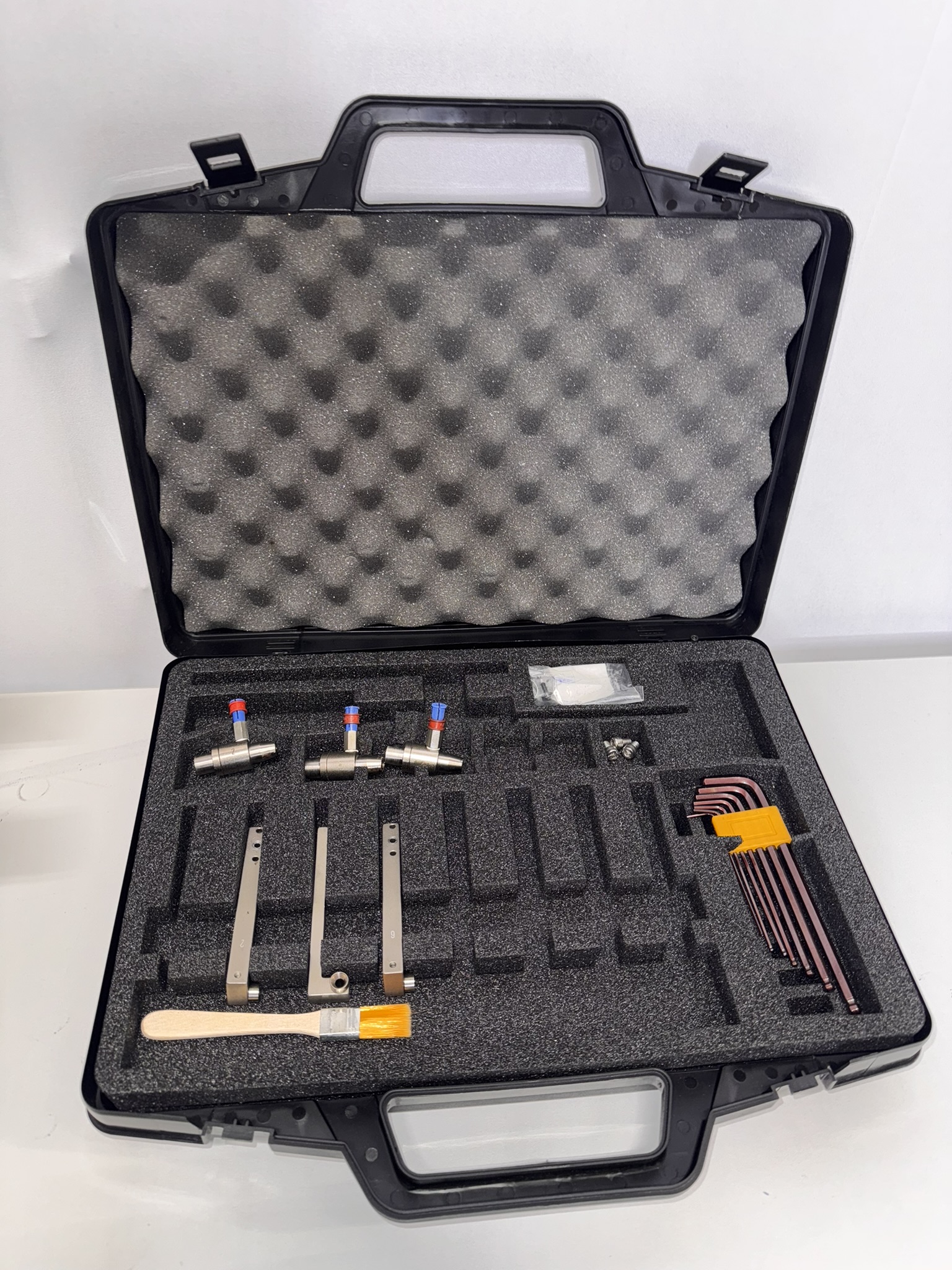

CS9100 Cutting & Stripping Machine

Add to Enquiry
  • Description

This automatic wire cutting and stripping machine automatically measures, cuts, strips and counts wires with conductor cross sections from 0.0324mm² to 6mm² (10-32 AWG, some 8 AWG) with high precision speed. Repetitive measuring, cutting and stripping are all done with the highest possible precision.



Technical Specifications CS9100





Wire length:                         Normal mode: 45mm to 1000meters (1.77-39.370”)

                                                Short mode: 1 – 45mm (0.04-1.77”)

                                                Resolution 0.14mm (0.01”)

                                                Repeat accuracy +/- 0.2%



Wire size range:                 Stranded 0.0324 to 6mm²  / 10-32 AWG, some 8 AWG

                                                Solid to 1.5mm² / approx 16 AWG



Outer wire diameter:         Standard up to max. 5.3mm (0.208”) / Optional up to max. 7mm (0.275”)



Stripping Length:               Partial stripping 0.1-30mm (0.01-1.18”) on both ends

                                                Full stripping 0.1-50mm (0.01-1.97”) on leading end,

0.1-30mm (0.01-1.18”) on trailing end



Production rate:                 3600 pcs per hour, 10mm (4”) long, 4mm partial strip on both ends



Transport Speed                10 speeds 210-1400mm per second (2.75-4.6 ft per second)

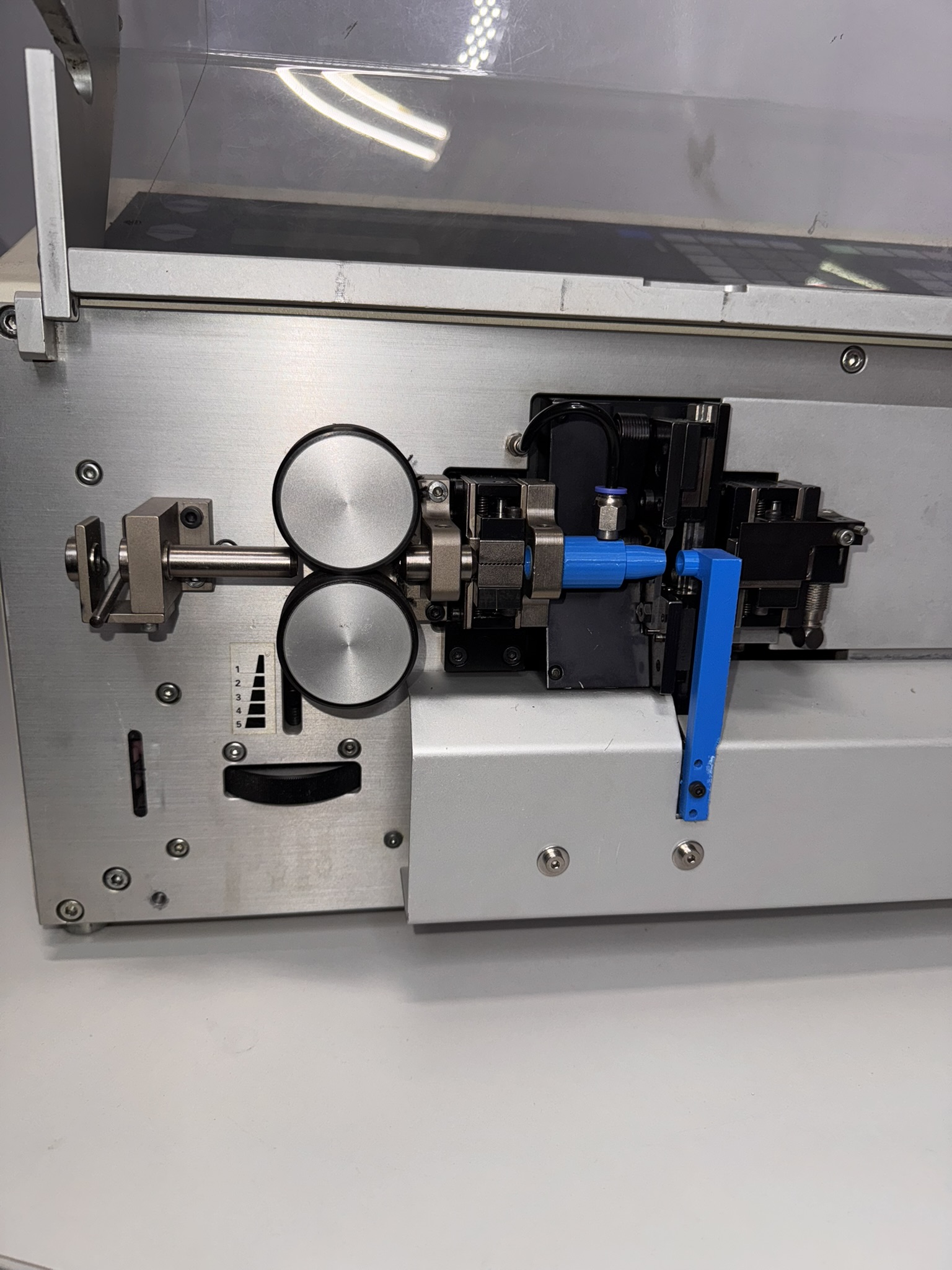

Feed Rollers:                       Knurled steel (standard), urethane – or diamond-coated (optional)



Clamping Jaws:                  Diamond-coated and knurled (1 set each standard)



Blade types:                        V-blades (standard), Radius V-blades and Die-blades (optional)



Memory /

Units of measurement:     191 wire programmes (metric or inches)



Power supply:                     90-130 VAC

                                                190-270 VAC

                                                48-62 Hz

                                                20-200 VA



Data Interfaces:                  RS 232 Serial port 1 for PC communication

                                                RS 232 Serial port 2 for PC up/down loading

                                                Parallel port for printer output (without PC)

                                                Auxiliary port for wire marker and robotic interfaces



Compressed air

requirements:                      6 bar (87psi), 10-150 litre per hour (0.3-5cfm) depending on processing mode



Dimensions:                        610 x 540 x 310mm (24.0” x 21.0” x 12.2”)

(L x W x H)                           Net weight 42kg (92.5lbs)

                                                Shipping weight 46kg (102lbs)
