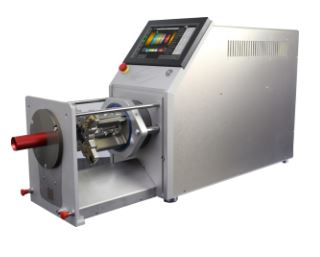

The BERI.CO.MAX V2 is a stripping machine for big cables and designed for the processing of coax and high-voltage cables from about 1,0 mm (0.04”) up to 24,0 mm (0.95”) OD (head type K1) and from about 1,0 mm (0.04″) up to 17,5 mm (0.69″) OD (head type K2) and for stripping length up to 100,0 mm (3.94”).
BERI.CO.MAX V2 – Stripping corrugated cables & sucoform cables
The BERI.CO.MAX V2 (head type K1) owns two pairs of blades, located across from each other. The head type K2 version uses a stripping head with four knives where all knife blades are on the same cutting line for exact right-angled cut. With this head it is possible to strip:
- sucoform cables
- corrugated cables.
BERI.CO.MAX V2 – Designed for high voltage cables
The BERI.CO.CUT V2 was especially designed to process high voltage cables.
HV cables have become an important wire stripping application.
The machine is available in two independent versions:
head type K1 and head type K2.
Outer Diameter |
head type K1: up to 0.95″ (24,0 mm)*
head type K2: up to 0.69″ (17,5 mm)*
|
Stripping Length |
up to 3.94″ (100,0 mm) |
