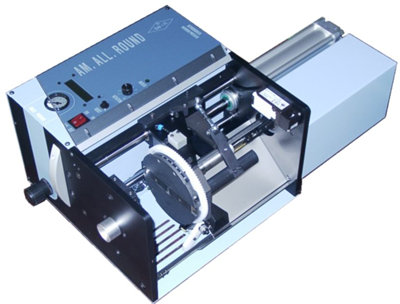

With the semi-automatic stripping machine AM All Round you can easily, comfortably and safely undertake high precise stripping works on single strands and cables.
Without any great difficulty you can strip extremely difficult insulations which up to now could have been treated insufficiently with conventional clamping and cutting methods or which could have not been treated at all.
The rotation blade head is a development of our company. By means of a very complex technical construction the different functions such as rotation movement, adjustment of the blades, removal etc. are resolved by only one control motor.
For comfortable operation the machine is equipped with a LC-Display.
The AM All Round has been produced for daily industrial use.
All operating elements are arranged in a logical and easily accessible way. Any modification for other cable diameters or stripping and removing lengths can be easily carried out within seconds.
You can adjust the rotation time of the blade head between 0.3 and 3 sec. in order to reach optimal cycle times.
Insulation waste is ejected on the side of the machine and thus can be collected or separated, while the working area remains clean.
Naturally, the AM All Round is equipped with all necessary safety devices according to the EC-Machinery Directive.
Advantages and Special Features
Rotating blade head
No changing blades when using flat blades
Brief setup times
Short cables (55mm + stripping length) can be processed
Sensor triggering
Removal of waste through lateral ejection
Progressively adjustable cable diameters
Cable guiding in the guiding tube
Progressively adjustable clamping force
Rotating time by preliminary selection
Die blades and prismatic blades available (special blades)
LC display
Stripping Length (total removing) - ca.5-160mm
Partial Removal AM All Round/400 - up to 400mm
Optionally - up to 1000mm
Stripping Diameter - ca. 2-24mm
Cycle Time - 2-5 sec
Air Consumption - ca. 4.1 I at 6 bar/ 160mm stripping length
Operating Pressure - 6-7 bar
W x D x H - 380 x 635 x 260mm
Weight (without accessories) - ca. 29kg
