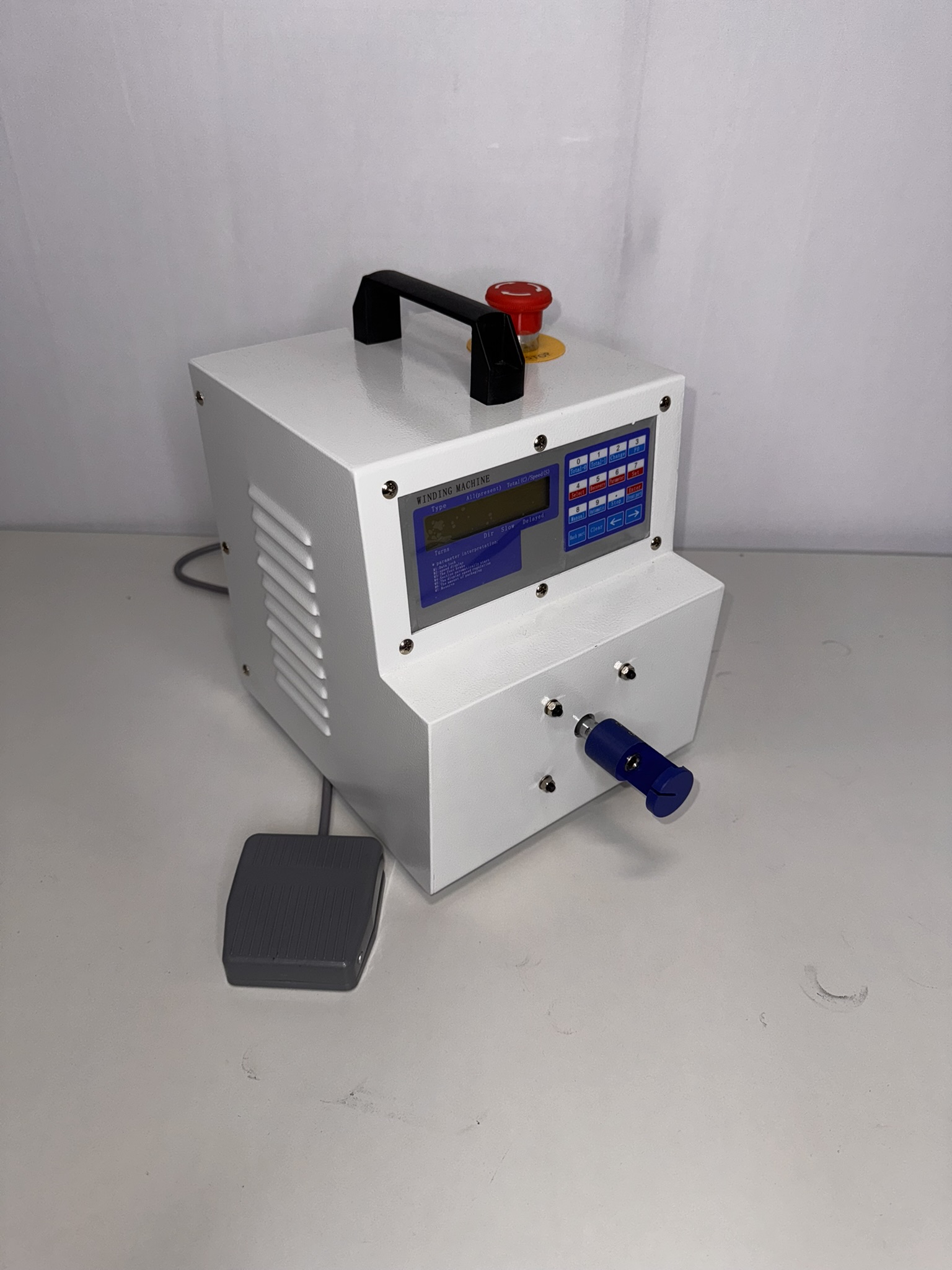

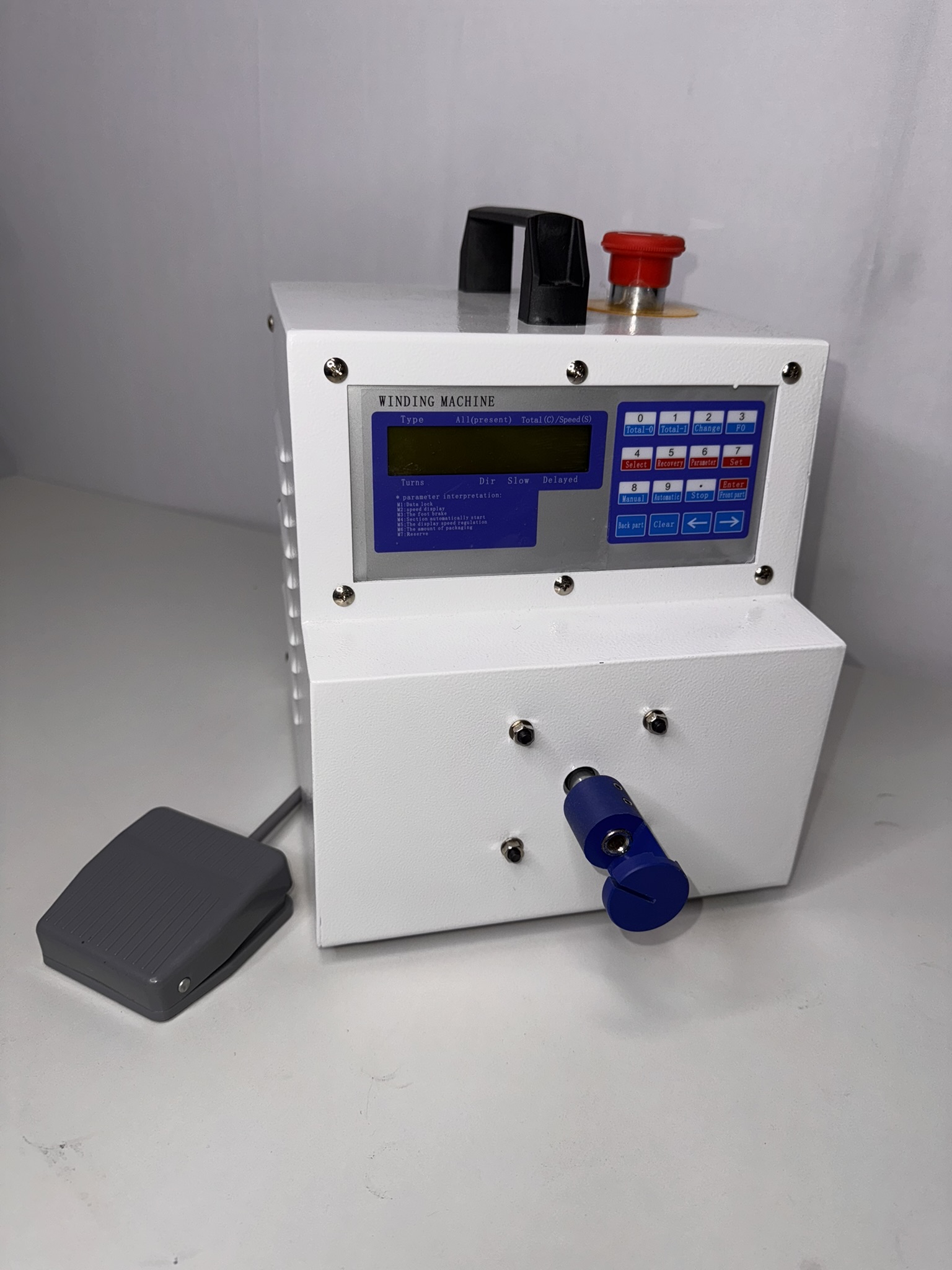

325 A Electric Wire Twisting Machine

Add to Enquiry
  • Description

The 325A motorized wire twisting machine is designed to replace traditional wire twisting by hand or manual tools.

This machine uses an electronic control system, the axis is connected to the motor directly with no belt consumption.

Complete industrial grade protection circuit design to ensure trouble free operation for more than 20,000 hours.



Technical Data



Model – 325A Electric Wire Twisting Machine



Function – Twist 2 wires into pairs, twist cycles, twist speed, data library, multi-section twisting



Twisting Speed – 300 – 7500 RPM



Twisting Cycles – 0.5 – 9999.9



Wire Diameter – 2 x 1.2mm Max



Data Library – 99 wire programs



Multi-Section Twisting – 20 sections max



Power Supply – AC 110 – 220 V +- 10%, 50/60 Hz



Dimensions – L 220 x W 240 x H 290mm



Weight – 15KG
